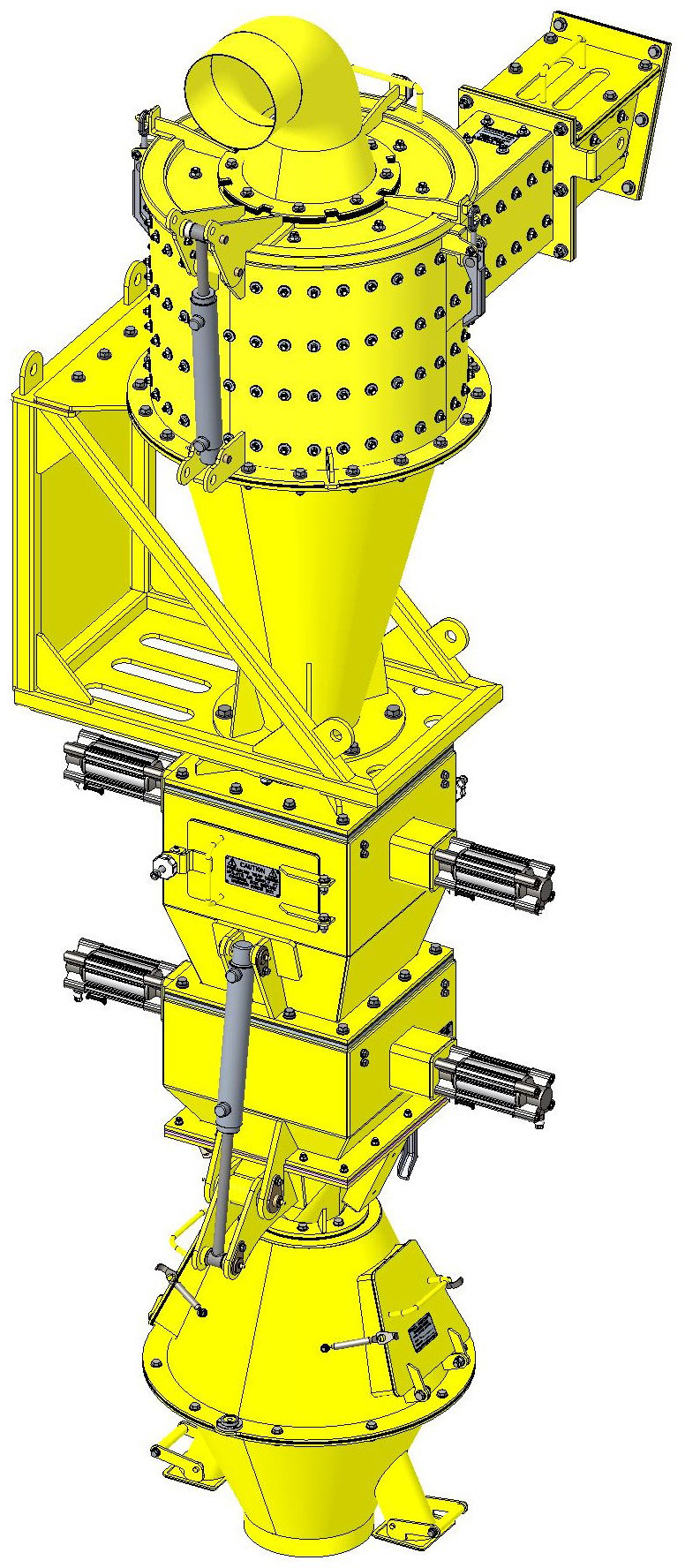

Cone Splitter RC Sampling System

RC sampling system suitable for compressors up to 3,000 CFM / 750 PSI. Double drop box set-up for continual sampling and incorporating a cone splitter with an adjustable sample size function.

Specifications & Features:

  • Designed for dry sampling conditions (exploration & grade control).
  • Suitable for air compressors up to 3,000 CFM / 750 PSI (1415 LPS / 50 BAR).
  • Drop box holding capacity: 25 Litres.
  • Sampling system height / mass: 3.4m / 672kg.
  • Alumina ceramic lined cyclone & inlet (unique bolt-in tile system for easy maintenance).
  • Bolt-in quenched & tempered steel wear plate fitted to cyclone lid.
  • Durable Linatex® rubber lined cyclone cone & drop box trap doors.
  • Unique self-adjusting drop box trap doors – Will self-adjust for wear & maintain sealing.
  • Adjustable split cone splitter, supplied with a bolt-in, pre-sized sample blade set (4%, 6%, 8% & 10% as standard). Other sizes are available upon request.
  • Modular design – Easy retrofit of rotary splitter if required.
  • Pneumatic actuation to double drop box doors & the vibrator, which is standard fitment.
  • Hydraulic actuation to cyclone lid & splitter swing-up for easy inspection & cleaning.
