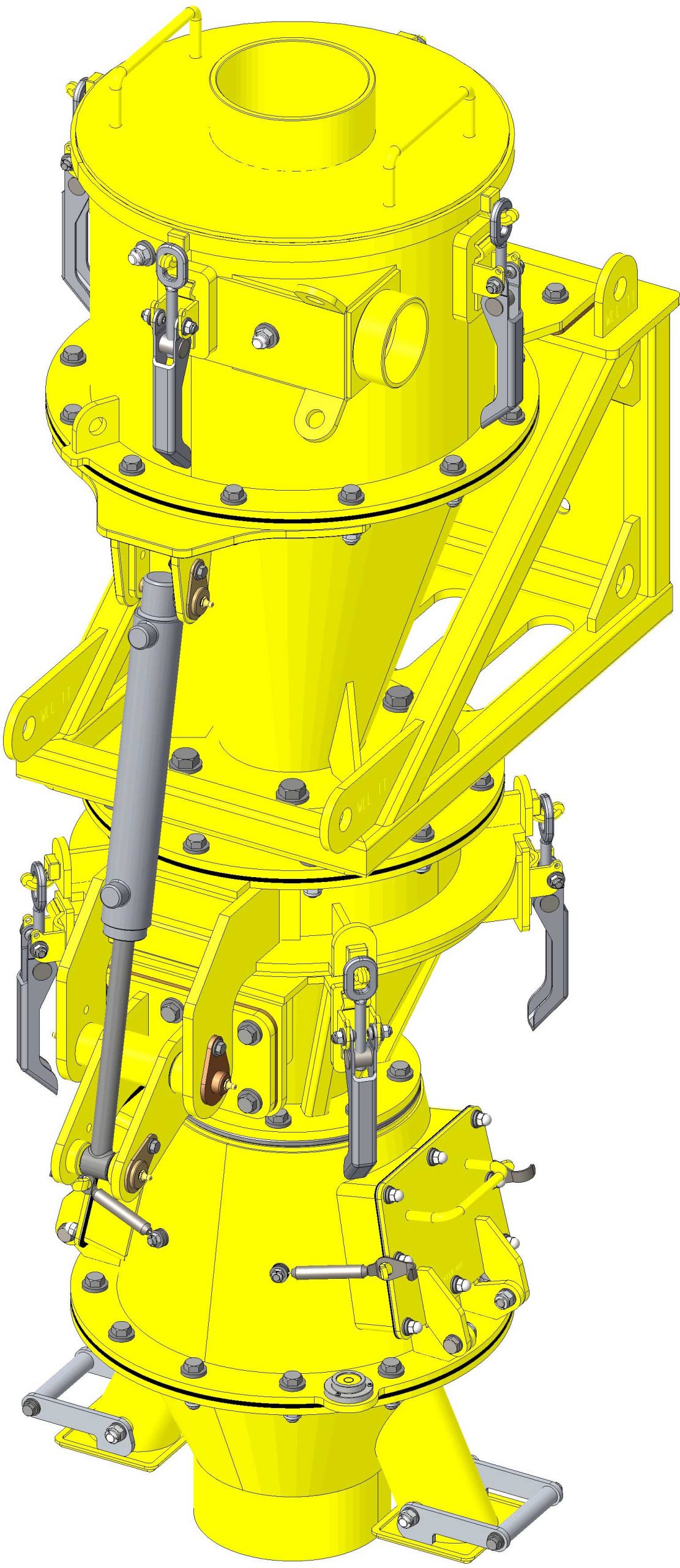

Cone Valve Splitter RC / Air Core Sampling System

Air core or small RC sampling system suitable for compressors up to 750 CFM / 400 PSI. Unique adjustable split, cone valve splitter design for superior sample presentation in a compact package.

Specifications & Features:

  • Utilises a unique cone splitter design that employs the splitting cone also as a cone valve, providing superior sample presentation over the splitting cone & sample blades.
  • Designed for dry sampling conditions (exploration & grade control).
  • Suitable for air compressors up to 750 CFM / 400 PSI (350 LPS / 28 BAR).
  • Drop box holding capacity: 15 Litres.
  • Sampling system height / mass: 1.7m / 260kg.
  • Bolt-in quenched & tempered steel wear plates to cyclone barrel & inlet tract.
  • Durable Linatex® rubber lined cyclone cone & cyclone lid.
  • Adjustable split sizes to cone valve splitter (4%, 6%, 8% & 10% as standard, other sizes are available upon request).
  • Pneumatic actuation to cone valve & the vibrator, which is standard fitment.
  • Hydraulic actuation to splitter swing-up for easy inspection & cleaning.
